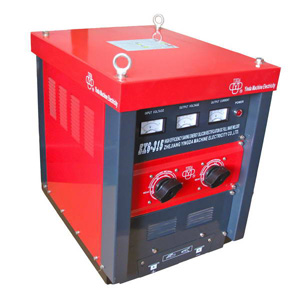

ZX6-315

INTRODUCTION:
ZX6 series welder is with tapped DC welding power. It is mainly consist of three-phase welding transformer with tap, rectifier diode, alternation switch and cooling fan etc. The adjustment of current is realized through simultaneously switch from three-grade eight-bit alternation switch to the taps of three winding of one side of the transformer. So in this way, the balance of three-phase electricity can be ensured even in current adjustment, and the ill influence to power supply system occurred by un-balance of 3-phase is effectively avoided. High leakage reactance transformer enable the power source have the outer characteristic of decline which meet the welding standard of various coating electrodes.

Use condition:
 Surrounding temperature: -10℃~40℃
 Altitude: <1000m
 The content of dust, acid, corrosive gas in the air should be in normal value
 Don’t use long time in salty air
 Voltage waving of power supply cannot over 10%
 Environmental wind power less than 1.5m/s
 Don’t’ use in the rain.

Features:
 High quality and stable performance
 Applicable for welding low-carbon steel, carbon steel, alloy steel, cast iron and stainless steel with 2.5-8mm welding rod
 High power using efficiency with 3-phase bridge type silicon rectification, energy saving machine.
 More wide and small adjusting of output welding current with 2 big/small switches.
 Simply and reasonable construction, low noisy, easy to maintance.

PARAMETERS / MODEL ZX6-315 X6-400 ZX6-500 X6-630
RATED INPUT VOLTAGE (V) 380 380 380 380
RATED FREQUENCY (HZ) 50/60 50/60 50/60 50/60
NO-LOAD VOLTAGE (V) 76 76 76 76
RATED CURRENT (A) 315 400 500 630
CURRENT ADJUSTABLE RANGE (A) 100-315 120-400 120-500 120-630
ADJUSTED RANK 7 7 7 7
RATED DUTY CYCLE (%) 35-60 35-60 35-60 35-60
RATED INPUT CAPACITY (KVA) 19.5 22 25 28
INSULATION CLASS F F F F
COOLING METHOD FORCED AIR COOLING
WEIGHT 105 110 125 135
DIMENTION 680*410*700 680*410*700 680*410*7005 680*410*700
